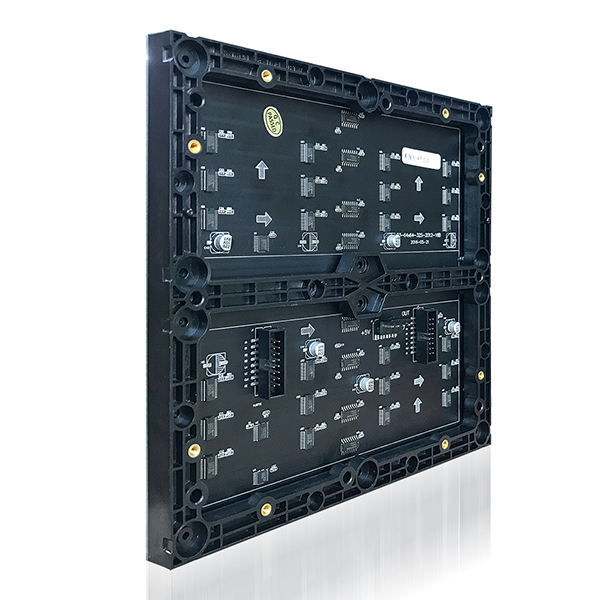

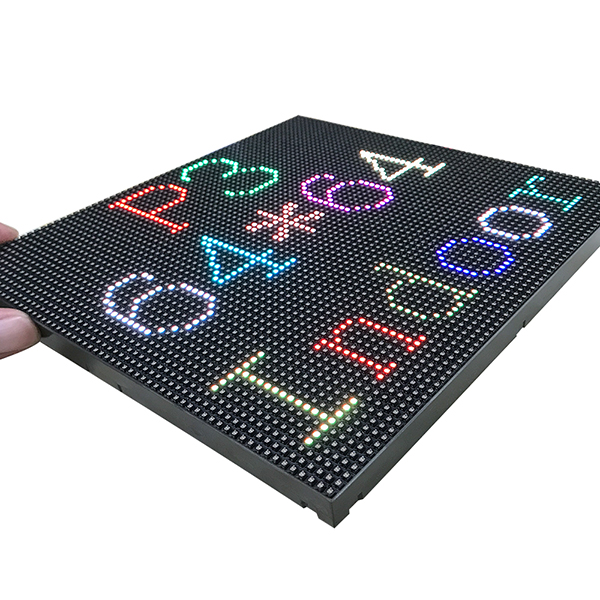

P3 Indoor RGB LED Display LED Screen Panel 192*192MM

Remarks & Key Precautions

1.indoor P3 LED module can go with 576*576mm LED cabinet.

2.Indoor P3 led module  uses HUB75E.

3.Temperature requirement:

1) Operating temperature range: -20℃-40℃ other temperature range, need to install temperature control equipment.

2) Lamp surface temperature(working period): ≤60℃, temperature control equipment is required to be installed when temperature exceeding the standard.

4.Humidity requirement:

Storage humidity range: 10% RH-60% RH, humidity over 60% RH requires dehumidification treatment.

5.Keep away from water: Indoor LED module have low level of protection, water can make the module short circuit, and leads to circuit device damage, so it is necessary to keep away from the water source.

6.Sweat or other liquid cannot be dripped on the display screen during disassembly and assembly operation. If it is dripped, then use alcohol to clean the product, to prevent the liquid from corroding the LED module.

7.The indoor full-color LED display contains a driver chip and an input buffer chip, which can display video, image and text information when connected to the led display control system

in order to ensure the service life of LED, do not display only still picture or still text for a long time, and cause the lamp tube brightness serious attenuation or cause a batch of dead lights, please play the rolling picture or text.
