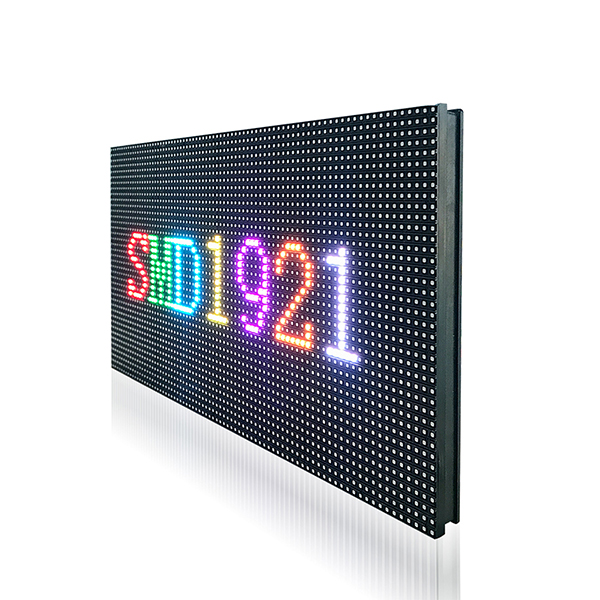

P4 Outdoor LED Display panel full colour LED Screen module 320*160mm

  • Model Number: P4 OUTDOOR
  • Module size: 320*160mm
  • Colour: RGB
  • Pixel: 80*40
  • Wholesale prices: 20 USD
  • LED: SMD1921
  • Number of ICs: 60
  • WhatsApp:+86 186 6980 7069

Remarks & Key Precautions

1.P4 Outdoor LED Panel is relative small pixel, we suggest to go with 960*960 outdoor Die-cast aluminum cabinet.

2.All outdoor P4 modules use HUB75

3.Temperature requirement:

1) Operating temperature range: -30 ° C -60 ° C, other temperature range, need to install temperature control equipment.

2) Lamp surface temperature (working time): ≤85°C, temperature control equipment is required to be installed when temperature exceeding the standard

4.Metal components of the screen, the shell of power supply and the cabinet should be grounded well, and the grounding resistance should be less than 10Ω. Prevent electrostatic damage to electronic devices in humid environment, while avoiding electric leakage to harm human body.

5.It’s not recommended that customer install module in outdoor environment with magnetic method. For it will cause the following hazards:

Rain or snow can enter from the screen front side to the screen back side, it may cause the electronic components, system card, power supply and cables be corroded and lose efficacy.

The magnetic installation method cannot guarantee the flatness and the performance of the led screen.

Module is likely to deform under extremely cold weather.

6. Please do not display static picture or text, for this may cause LED lamp brightness go down seriously or LED lamp die. Please play moving pictures or text.Application.

7. In the range of 10% to 65% RH relative humidity, the screen should be lighted on more than 2H every half month

8. After the heavy rain, the display screen should be checked in time to see whether there is dampness, water droplets, water vapor and other problems inside the display screen.

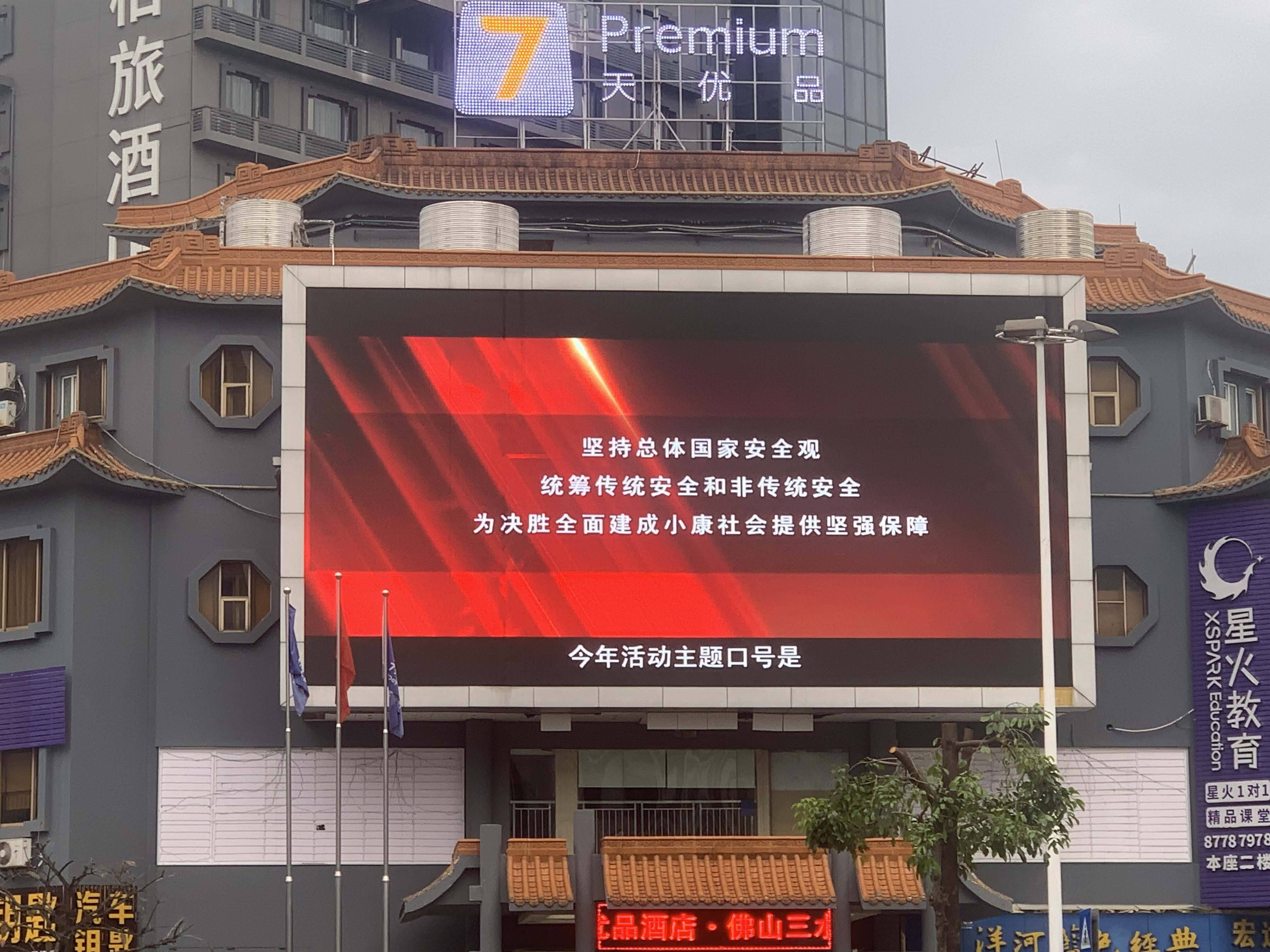

P4 outdoor full color LED large screen

OUTDOOR P4 SMD 3IN1 TECHNICAL   PARAMETERS
led moduleItemParameter
Model NumberP4-10S
Module size320mm*160mm
Pixel pitch4mm
Pixels Density62500dot/m2
Pixel configuration1R1G1B
Package modeSMD1921
Pixel resolution80dots(W)*40dots(H)
Max Power40W
Module thickness16mm
Drive typeConstant   drive
Scan mode1/10scan
Port typeHUB75
Brightness of white balance5500cd/m2
Best viewing distance4M50M
Best viewing angle160°(W) 120°(H)
Temperaturestorage:-35℃~+85
working:-20℃~+50
Relative humidity10%-95%

    Power
Working voltageAC110V220V±10%
Average Power consumption<320W/
Max.Power consumption<800W/
Current<20mA(single   LED)

     Main technical  parameter
Driving deviceConstant   drive IC
Refresh frequency>1920HZ
Grey scale/colors16384gray   level/16.7M colors
MTBF>9000hours
Power switchAutomatic   switch
